Posted by Product Name & Model:
Lightweight Conveyor Belt Heavy-Duty Nylon Zipper Fastener
- #5 Conveyor Belt Zipper
- #7 Conveyor Belt Zipper
- #8 Conveyor Belt Zipper
- #10 Conveyor Belt Zipper
Product Description

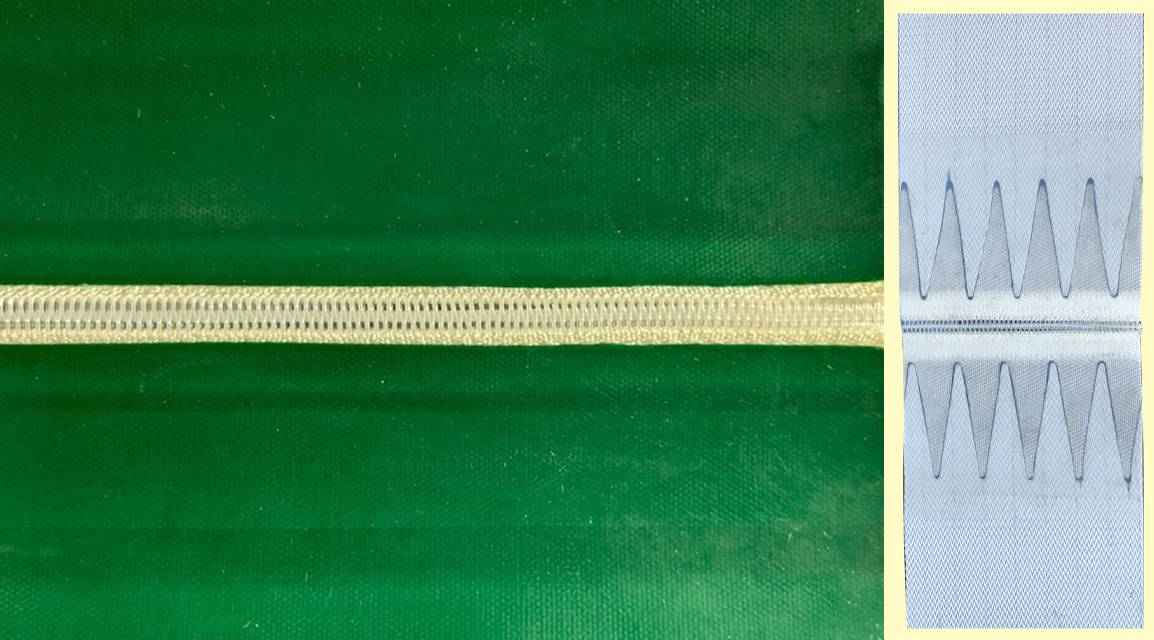

This is a heavy-duty zipper fastener that is specially sewn with a wide nylon tape and a polyester spiral chain. The unique feature is that the two sides of the zipper do not require a slider to be joined. To connect the two sides, a polyester monofilament of a suitable thickness is threaded through the middle of the joined zipper teeth to create a high-strength, specialized zipper fastener.

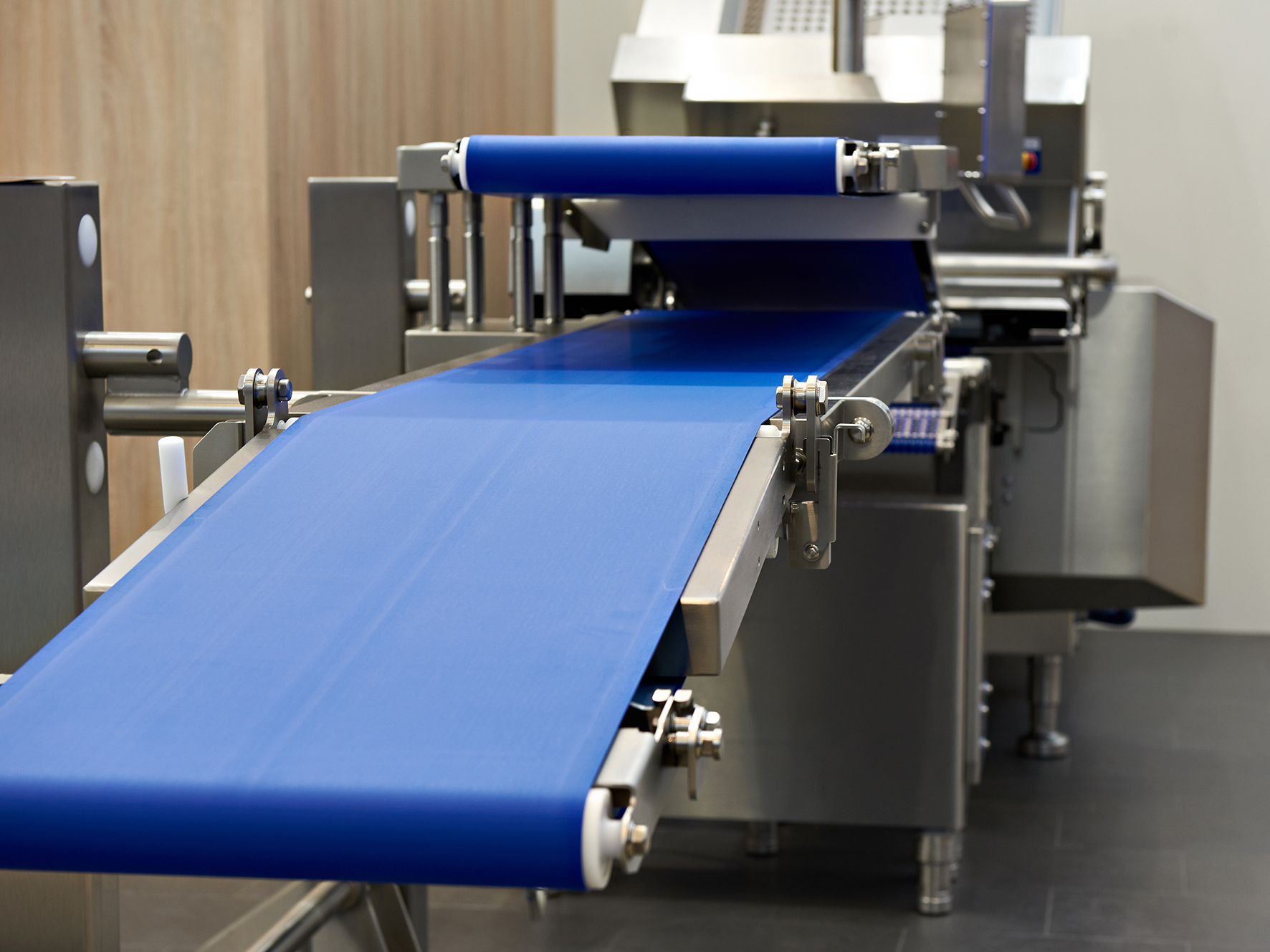

This heavy-duty nylon zipper fastener is specifically designed for the high-strength joint requirements of the two ends of a lightweight conveyor belt. Since 2021, KCC has specially developed production equipment for this unique zipper, successfully creating four sizes of heavy-duty zipper fasteners. The durable tapes are made from high-strength nylon fibers, which are precision-sewn with a polyester monofilament spiral chain using a special technique. This provides a more convenient joining solution for lightweight conveyor belts.
Product Features
- Different models and sizes of the zipper fastener can be used with conveyor belts of various thicknesses.
Zipper Specifications
- #5: Teeth thickness: 2.5 mm / Tape thickness: 0.50–0.55 mm
- #7: Teeth thickness: 3.0 mm / Tape thickness: 0.70–0.75 mm
- #8: Teeth thickness: 3.2 mm / Tape thickness: 0.70–0.75 mm
- #10: Teeth thickness: 4.0 mm / Tape thickness: 1.05–1.10 mm
- Total Zipper Width: 135-140 mm
- Monofilament for Center Joint: #5 – 0.74 mm / #7 – 0.80 mm / #8 – 0.90 mm / #10 – 1.05 mm
- Colors: Off-white and black. Special colors can be custom-ordered in limited quantities.

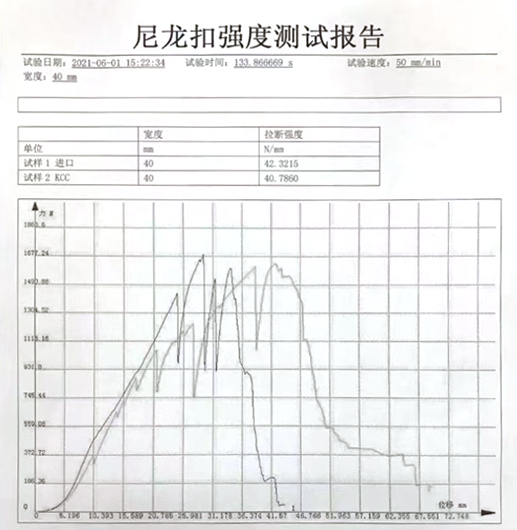

- Zipper Strength: Over 160 kgs of flat pull strength per 40 mm width (lateral tension of over 40 N/mm).
Shipping & Packaging

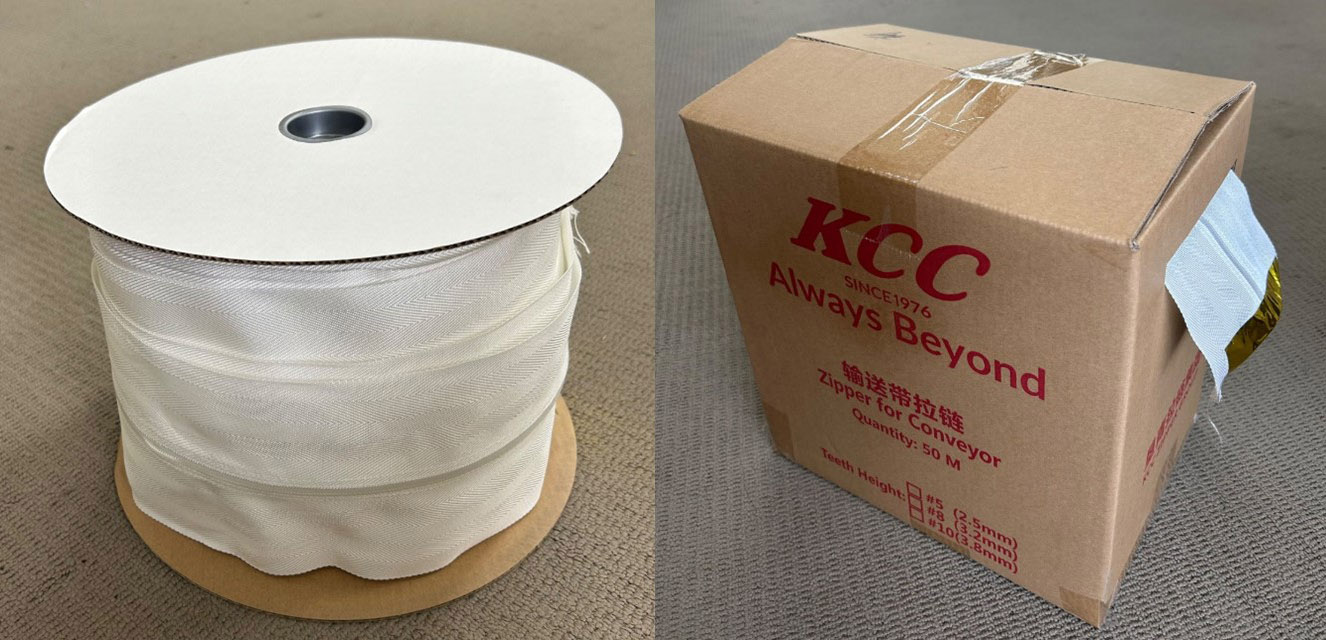

- Each 50-meter zipper is wound on a single bobbin.
- Each bobbin is packed in its own cardboard box, from which the zipper can be pulled out directly during use.
- Bobbin Dimensions: Diameter 320 mm x Height 230 mm
- Box Dimensions: Width 250 mm x Length 350 mm x Height 350 mm
